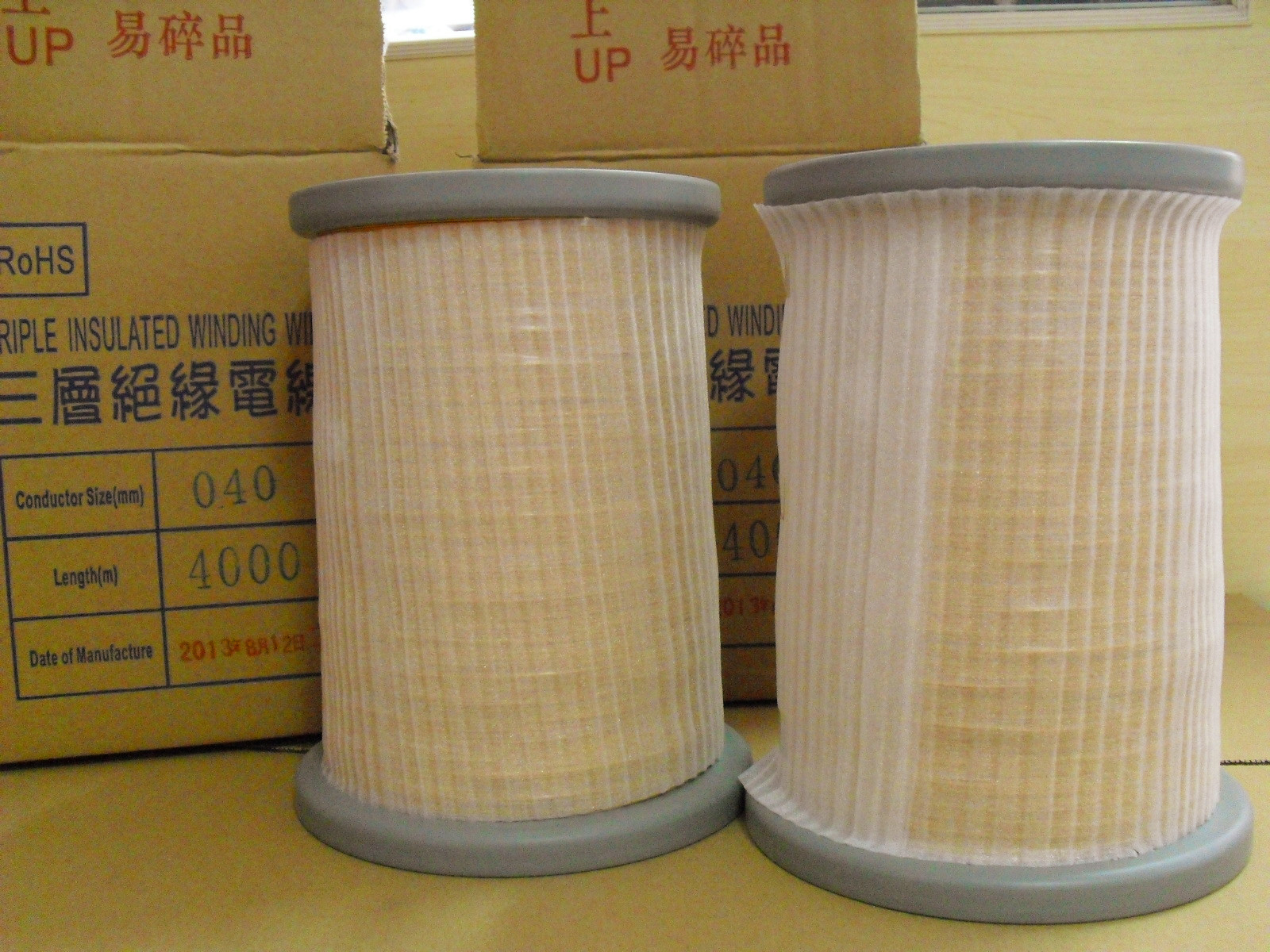

变压器高速绕线机专用三层绝缘线

一．应用范围 Scope：

三层绝缘线在计算机、无绳电话、变频器、IT设备等产品的微型变压器中得到广泛应用。

Triple Insulated Wire is applied in winding of Micro-transformer which is built in the personal computer、

portable handy phone、inverter、IT equipment and other similar devices.

　二．构造Construction

    1.导体 Conductor：

铜线     Copper wire

镀锡线   Tin plated metal wire 漆包线   Enamelled metal wire

2.绝缘层  Insulation Layers：

第一层（First layer）：PET

第二层（Second layer）：PET

第三层（Third layer）：PA

三．优点 Benefits：

1.线圈容易卷制

Easy winding

2.绝缘破坏电压高，可以省去绝缘胶带、绝缘隔层

Because of high breakdown voltage omitable the

 insulation tapes and barriers

3.出众的耐磨性为高速自动卷线提供可能

  High speed automatical winding is possible because of

resistance to abrasion

4.三层绝缘保护，没有针孔现象

Triple Insulated Wire offers extra protection against

pinholes

          5.不需剥去绝缘层可直接焊锡

Insulating layer can be stripped without direct solder
